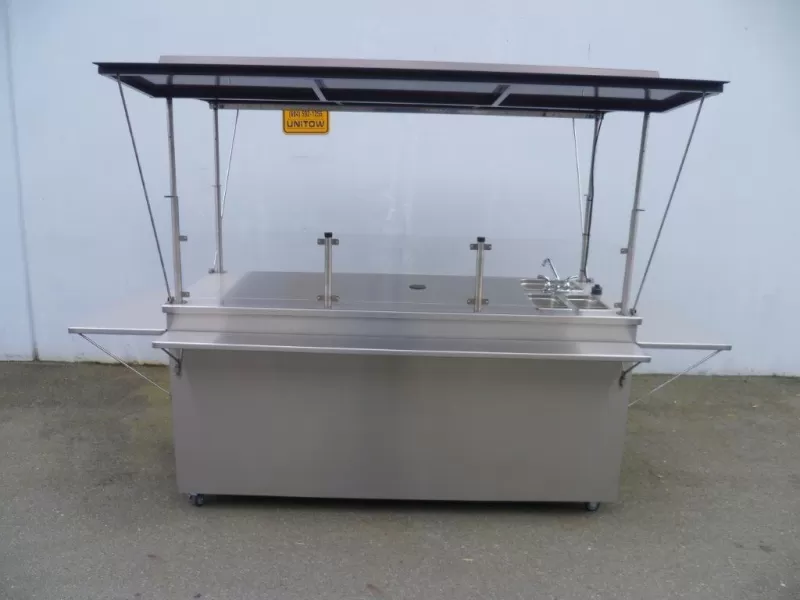

7 ft Electric Castor Cart

By Apollo Custom Manufacturing

7 ft Electric Castor Cart Information

  • Size in relation to the counter top of the cart
  • 84’’ long x 32’’ wide x 41’’ high
  • Frame is constructed from steel tubing and powder coated for protection
  • Alum floor – walls
  • 22 ga 304 # 4 stainless steel exterior skins or laminate
  • 20 ga 304 # 4 stainless steel locking storage doors
  • 18 ga 304 # 4 stainless steel counter top
  • 18 ga 304 # 4 stainless steel end shelves
  • Stainless steel canopy uprights
  • Stainless steel sneeze guard uprights with plexi-glass inserts
  • Light gauge steel tube canopy frame – powder coated
  • Dome shaped collapsible hard top canopy
  • Double or triple ware wash sinks – 10" x 10" x 6" deep – Double or triple will depend on local health requirements
  • Hand wash sink – 10" x 10" x 6" deep
  • Hot and cold mixing faucet
  • 10 gallon fresh water tank
  • 15 gallon waste water tank – Complete with dump valve and drain hose
  • Shurflo on demand water pump
  • 2.2 gallon General electric water heater
  • All water components are NSF and/or CSA approved
  • Castor Cart (cont)
  • Undercounter refrigerator
  • 120/240 power panel with 120/240 twist lock power cord

Decades of Unmatched Quality

The classic food cart has been a cornerstone of our business for over 20 years.  We custom build our carts with high quality stainless steel, powder-coated steel frames, and vinyl canopies.


Steel Construction

Size in relation to the counter top of the cart
90’’ long x 42’’ wide x 39’’ high
Frame is constructed from steel tubing and epoxy coated for protection – The service side of the cart is from stainless steel tubing
Alum Floor – Wall and Wheel Wells
22 ga 304 # 4 Stainless Steel Exterior Skins
20 ga 304 # 4 Stainless Steel Locking storage doors
18 ga 304 # 4 Stainless Steel Counter top
Stainless Steel Canopy Uprights
Stainless Steel sneeze guard uprights with Plexi-Glass Inserts


Canopy


Aluminum hard top canopy – Color choices available


Cooking

Propane Bottle Rack
Propane Bottle Safety Chain
2 Stage Propane Regulator
½’’ and 3/8’’ Copper Piping to Appliances
All propane parts are UL and or CSA approved
Propane system inspected and approved by a third party approved inspection facility


Plumbing

Double ware wash sinks – 10 x 10 x 6’’ deep– Customer to advise if different or cart will ship with double warewash
Hand wash sink – 10 x 10 x 6’’ deep
Hot and Cold Mixing Faucet
10 Imp Gallon / 45 Litre Fresh Water Tank
15 Imp Gallon / 68 Litre Waste Water Tank – Complete with dump valve and drain hose
Shurflo on demand water pump
6 Gallon Suburban Water Heater – Propane Fired
All water components are NSF and/or CSA approved


Other Equipment

Deep Cycle Battery
Battery Charger
Trailer Light Towing Package – Typical flat 4 wiring harness
2000 lb axel c/w pneumatic tires and rubber ride suspension
Swivel Jacking Wheel
Removable Towing Hitch – 1 7/8’’ ball
Removable Front Castor – Heavy duty and locking
Safety Towing Chains

Videos

Terms

60% plus tax deposit by bank draft or wire transfer 40% balance and taxes at completion Any work beyond the scope of this quote will be charged out at $120 per hour plus parts and materials. Manufacture time is approx. 8-12 weeks. Please note that manufacture times subject to change based on confirmation of orders between quote date and opening deposit. All estimated completion dates are based on a production time line commencing on receipt of opening deposit. Apollo will inform customer if any delays are experienced during build. Apollo is not responsible for loss of business from events booked prior to completion of product build.
